Cisco Switch C9407R Catalyst 9400 Series 7 slot chassis
C9407R là khung khe cắm Cisco Catalyst 9400 Series 7 slot. Thiết bị chuyển mạch Cisco Catalyst 9407R Series là nền tảng truy cập chuyển mạch doanh nghiệp mô-đun hàng đầu của Cisco được xây dựng cho bảo mật, IoT và đám mây. Nền tảng này cung cấp khả năng bảo vệ đầu tư chưa từng có với kiến trúc khung có khả năng hỗ trợ lên tới 9Tbps băng thông hệ thống và cung cấp năng lượng chưa từng có cho mật độ cao IEEE 802.3BT (60W PoE).

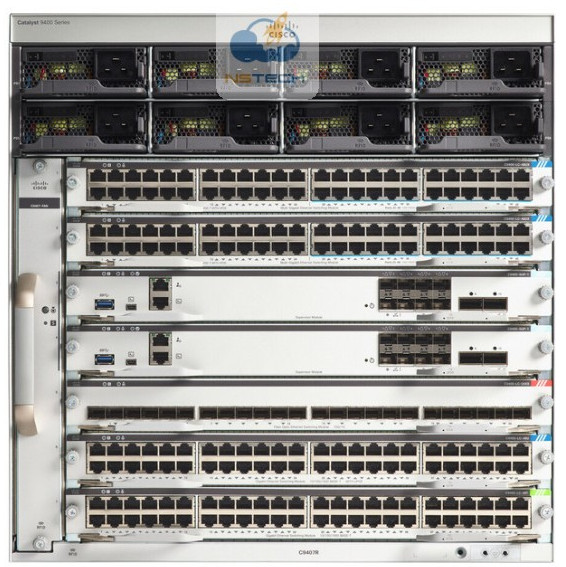

Hình ảnh: Cisco C9407R chính hãng
Thông số của C9407R Catalyst 9400 Series 7 slot chassis
| Feature | Cisco Catalyst C9407R |
| Tổng số slot | 7 |
| Khe cắm slot | 5 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 3 and 4 |
| Supervisor engine Màu đỏundancy | Yes |
| Supervisor engines supported | C9400-SUP-1 |
| Maximum PoE per slot | 2880W |
| Khả năng mở rộng băng thông tối đa trên mỗi khe cắm slot | Up to 480 Gbps on all slots |
| Số lượng nguồn cung cấp | 8 |
| Nguồn vào AC | Yes |
| Tích hợp PoE | Yes |
| Nguồn điện hỗ trợ | 3200W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Kích thước (H x W x D) | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm) |
| Rack Units (RU) | 10 RU |
| Trọng lượng khung (với khay quạt) | 63.0 lb (28.58 kg) |
| Lắp rack | 19-in rack compatible (19-in. rack and cable guide hardware included) |
| Tuân thủ chuẩn | CE Marking |
| An toàn | – UL 60950-1
– CAN/CSA-C222.2 No. 60950-1 – EN 60950-1 – IEC 60950-1 – AS/NZS 60950.1 – IEEE 802.3 |
| EMC | – 47 CFR Part 15
– CISPR22 Class A – KN 32 Class A – EN 300 386 V1.6.1 – EN 55022 Class A – EN 55032 Class A – CISPR 32 Class A – EN61000-3-2 – EN61000-3-3 – ICES-003 Class A – TCVN 7189 Class A – V-3 Class A – CNS13438 Class A – CISPR24 – EN 300 386 – EN55024 – TCVN 7317 – KN35 |
| Industry EMC, An toàn, and environmental standards | – NEBS: Operating temperature: -5 to 55C
– Relative Humidity: 10-93% – Operating Altitude: up to 1829 m (6000 ft) at 55C – ETSI 300-019 Requirements are coveMàu đỏ under GR-63-CORE with some deviations. – SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) – ETS 300 019-2-1, Class 1.2 Storage – ETS 300 019-2-2, Class 2.3 Transportation – ETS 300 019-2-3, Class 3.2 Stationary – EN50121-4 – EN 300 386 |
| ROHS compliance | ROHS5 |
| DESCRIPTION | |
| Manufacturer: | Cisco Systems, Inc |
| Manufacturer Part Number: | C9407R= |
| Manufacturer Website Address: | Cisco |
| Brand Name: | Cisco |
| Product Line: | Catalyst |
| Product Series: | 9400 |
| Product Model: | C9407R |
| Product Name: | Catalyst 9400 Series 7 Slot Chassis |
| Marketing Information: | Built for Security, IoT, Mobility and Cloud
Advanced persistent security threats, exponential growth of Internet of Things (IoT) devices, mobility everywhere and cloud adoption require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating business service rollout. The Cisco® Digital Network Architecture (DNA) with Software Defined Access (SD-Access) is the network fabric that powers business. Cisco DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include: ● Simplified device deployment ● Unified management of wired and wireless networks ● Network virtualization and segmentation ● Group-based policies ● Context-based analytics The Cisco Catalyst® 9400 Series switches are Cisco’s leading modular enterprise switching access platform built for security, IoT and cloud. These switches form the foundational building block for SD-Access ― Cisco’s lead enterprise architecture. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). Redundancy is now table stakes across the portfolio. The Catalyst 9400 delivers state-of-the-art High Availability (HA) with capabilities like uplink resiliency, N+1/N+N redundancy for power supplies. The platform is enterprise optimized with an innovative dual-serviceable fan tray design, side to side airflow and is closet-friendly with ~16″ depth. A single system can scale up to 384 access ports with your choice of 1G copper UPoE and PoE+ options. The platform also supports advanced routing and infrastructure services, SD-Access capabilities and network system virtualization. These features enable optional placement of the platform in the core and aggregation layers of small to medium-sized campus environments. |
| Product Type: | Switch Chassis |
| INTERFACES/PORTS | |
| Modular: | Yes |
| MEDIA & PERFORMANCE | |
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| I/O EXPANSIONS | |
| Number of Total Expansion Slots: | 7 |
| Expansion Slot Type: |
|
| NETWORK & COMMUNICATION | |
| Layer Supported: | 3 |
| MANAGEMENT & PROTOCOLS | |
| Manageable: | Yes |
| POWER DESCRIPTION | |
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
| PHYSICAL CHARACTERISTICS | |
| Compatible Rack Unit: | 10U |
| Form Factor: | Rack-mountable |
| Height: | 442.2 mm |
| Width: | 439.4 mm |
| Depth: | 414 mm |
| Weight (Approximate): | 28.58 kg |
