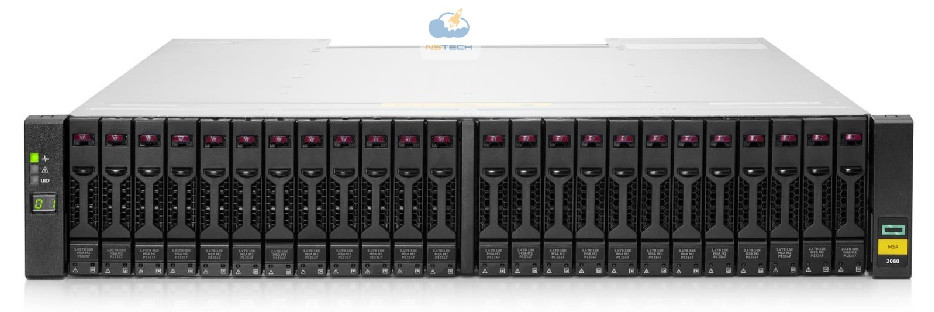

HPE MSA 2062 16Gb Fibre Channel SFF Storage
Th2
– HPE MSA Gen6 2062 Storage Array models and HPE MSA 2060 Drive Enclosure options with 94% efficient power supplies that meet EU Lot9 2023 power efficiency requirements.
– Expand the capacity of your HPE MSA 2062 Array by adding a 2060 LFF Drive Enclosure using the new HPE MSA 20 TB SAS 7.2K LFF HDD. Available as a single drive or six-pack drive option.
Maximize the flash storage capacity of your HPE MSA 2062 Array and Drive Enclosures by adding the new HPE MSA 7.68 TB SAS RI SFF SSD.
– Add 25 Gb iSCSI host connectivity support to your HPE MSA 2062 Array with the new HPE MSA 25 Gb SFP28 Short Range 4-pack of iSCSI Transceivers.
– Web Browser Support
The MSA 2060 arrays come integrated with a new web browser (SMU v4) and CLI based software for storage and RAID management, setup, configuration, and troubleshooting. The MSA 2060 management supports Microsoft Internet Explorer, Mozilla Firefox, and Google Chrome.
HPE Server Compatibility
The MSA 2060 supports most HPE ProLiant, BladeSystems and Integrity servers including
· HPE ProLiant DL, ML Servers
· HPE c-Class Blade Servers
· Integrity servers, IA64
· Compatibility must be confirmed at:
– Web Browser Support
The MSA 2060 arrays come integrated with a new web browser (SMU v4) and CLI based software for storage and RAID management, setup, configuration, and troubleshooting. The MSA 2060 management supports Microsoft Internet Explorer, Mozilla Firefox, and Google Chrome.
– Configuration and Management Tools
· Management access, out-of-band, Storage Management Utility (SMU) V4, CLI.
· Interface Types: USB 100/1000 Ethernet.
· Protocols Supported SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet
| Hãng sản xuất | HPE |
| Mã sản phẫm | R0Q80A |
| RAID Levels supported |
0,1, 5, 6, 10, MSA-DP+ |
| Drive | Up to 12 LFF HDD and/or SSD per array model |
| Storage Capacity | 1045.44 TB with SFF expansion / 2160 TB with LFF expansion (with maximum expansion) |
| Storage Expansion | 24 drive bay 2060 SFF disk enclosure and/or 12 drive bay 2060 LFF disk enclosure (add up to 9) |
| Host Interface | 8-ports 16Gb FC, 4 ports per controller |
| Storage Controller | (2) HPE MSA 2060 16Gb FC storage controllers, 4-ports each |
| SAN Backup Support | Yes |
| Storage Mirroring Support | Yes |
| Insight Manager Support | Yes |
| Compatible Operating Systems | Windows Server 2019 / Windows Server 2016 / VMWare vSphere 6.7 / Red Hat Linux 8 / SuSE SLES 15 |
| Clustering SupportYes | Yes |
| Form Factor | 2U |
| Warranty Standard Statement | Three-year limited warranty, parts exchange next business day delivery. Disk enclosures, hard drives and Options for the HPE MSA 2060 carry their own warranty. |
| Energy Efficiency Compliance | Energy Star Compliant |
| Detailed Product Description | MSA 2060 Large Form Factor chassis with (2) 4-port 16Gb Fibre Channel Controllers |
| Weight (imperial) | 11 lb |
| Weight (metric) | 5 kg |
| Product Dimensions (imperial) | 3.5 x 17.5 x 20.0 in |
| Product Dimensions (metric) | 8.9 x 44.5 x 50.8 cm |
